KEW manufactures, exports & supplies precision quality BOPP Films Printing Machine, Rotogravure Printing Machine, which is suitable for printing plastic and paper packing materials like Polyethylene, Polypropylene Bag, Cellophane, Paper Roll, BOPP Film, LDPE, OPP, etc. from Ahmedabad, Gujarat, India.
KEW Rotogravure Printing Machine are the most suitable & efficient printing Equipment for Printing of Paper Bags, Plastic Bags, Milk Pouches, Food Bags, Super market Hand Bags, Vest Bags, Cloth Bags, Confectionery Wrappers, Film Pouches, etc.
BOPP Films Printing Machine
We have been successfully manufacturing, exporting & supplying all types of BOPP Films Printing Machine, Rotogravure Printing Machine since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing. For BOPP Films Printing Machine, Rotogravure Printing Machine with web guiding system, we have processed all types of material like Polyester, BOPP, LD, PVC, Paper, Aluminum Foil, Film, etc. We have more than 105 installation of Rotogravure Printing Machine in India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc. Also Manufacturer of Protective Film Cutting Slitting

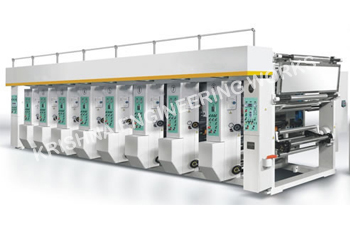

KEW offers new high speed Rotogravure Printing Machines – Model – KEW–HSRG–001 Semi Auto. The machine has great aesthetic looks with great performance at high speed.
Rotogravure Printing Machine
Technical Specifications of Rotogravure Printing Machine:
- Max. web width : 800/1000/1200/1400/1600 mm
- Maximum operating speed : 150 / 200 meters /min.
- Print repeat range : 350 1000mm
- Printing materials : Foil, Paper, Polyester, Bopp, PP, PVC, LDPE etc.
- Drying source : Electrical /thermic fluid / gas
- Dryer : Closed type single side drying oven
- Dimension of printing station: 600 x 3200 x 65mm
- Registration longitudinal : Motorized ball screw
- Lateral : Manual motorized (Optional)
- Tension control feedback : Through dancer roll & load cell
- Modular printing station each being complete in it for easy adoptability of when required.
- Specially designed compensator roll with ball screw to achieve extra-fine registration.
- All rollers are dynamically balanced to ensure noise and vibration free operation for accurate printing.
The unique design of the impression roller ensures even application of pressure across the entire width of the substrate.
Close type single side drying oven & special type one & one type counter flow arrangement for exhaust and air blowing to get high speed drying.
- Individual control panel at each station for all electrical controls & pneumatic system.
3 Drive Servo based automatic web tension control system with dancer roll feedback & load cell sensing for in – feed, out-feed & main & digital drives for unwind & rewind
- Video scope
- Automatic registration control system
- 7 Drive with turret
- Ink circulation system
- Auto splicing.
- PLC base functions.
- PID control with exhaust with drive controls.
- Lubrication system
We Also Offer:
- Rotogravure printing machine with Electronics Line Shaft (ELS)
- Shaft less cylinder chucking system
Ultrasonic edge guide sensor with electric motor actuating. Unwind tension control by dancer feedback and load cell indication. In feed system to maintain tension between unwind and first printing unit. Unwinder, Rewinder, in-feed, out-feed and main drive tension control by HMI touch screen / PLC control.
Out-feed system to maintain tension between last printing and Rewinder. Rewinding tension control by dancer feedback and load cell indication same as controlled by unwinding side through HMI Touch screen.
Individual inspection box with light provided on each station to see the registration of printing of each station while machine is running.
- Motorized web video inspection system with traverse bar mounting.
Automatic length and side-lay register control system with full colored touch screen to controlled registration during running press. Provided with high resolution color camera, monitor to see registration while running.
A.C. Digital Servo Motor with servo drive to get higher accuracy of registration at higher speed for rotogravure press. 3 Drive and 5 Drive Servo Option available.
