We “KRISHNA ENGINEERING WORKS” are manufacturing, exporting & supplying all types of the Pre Printed Adhesive Tapes Cutting since We are winner of 3 times National of Award and 2 times Internationals Award for Quality manufacturing.
KEW leading Manufacturer, Exporter & Supplier of heavy duty Web Guide System and BOPP Tape Cutting Machine with high production output & efficient function with more than 575 installation in place all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc.

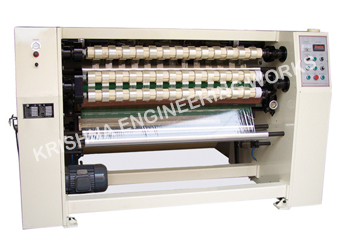

KEW Manufacturers, exports & supplies BOPP Tape Cutting Machine also known as BOPP Tape Slitting Machine working width 300 mm suitable to slit adhesive tape from 12 mm on wards. The Machine consists of M S Side wall, DC/AC Motor with drive, Unwinder, Rewinder system, Auto stop counter meter, Control Panel, etc.
Product Application :
- BOPP tapes
- Single side coated fabric / tissue tapes
- Masking tape
- Protection tape
Specification of Pre Printed Adhesive Tapes cutting machine
• Size ‐ 50” (1350 mm – 1650 mm) Working Width
• Main M.S. Wall with all side shaped ‐ 35mm thick
• Knurling Roller Complete – 5 Nos.
• 10 Nos. Razor Balancer Circular Cutter with blade fixing arrangement
• 2 Nos. Turret Rewinder shaft with 1 HP A.C. Motor
• Mechanical Independent Clutch Assembly fitted on shaft with Rewinder
• All Drives through Gears & Chain wheel with D.C. Drive
• 7.5 H.P. A.C. Main Drive Electric Motor with Control Panel with On‐Off switch, Speed Regulating, Emergency Stop MCB Contactor in the Panel.
• Type of Material To be Processed : self-adhesive BOPP
• Slitting Method : Circular Cutter
• Core Size of the Roll (Rewinding ): Inner DIA 50 and 75 mm
• Size of the Slit Strips (Width): 19 mm, 25 mm, 30 mm, 38 mm, 48 mm, 50 mm, 75 mm, 80 mm, 120 mm
